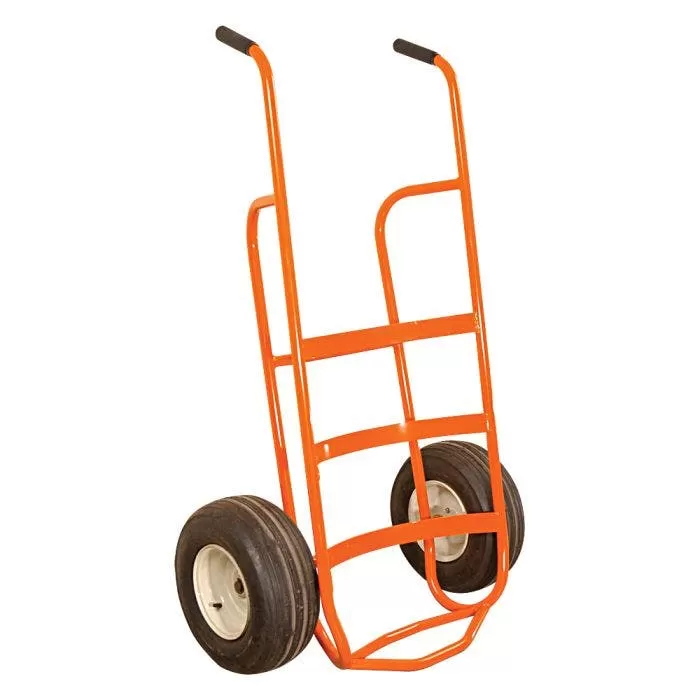

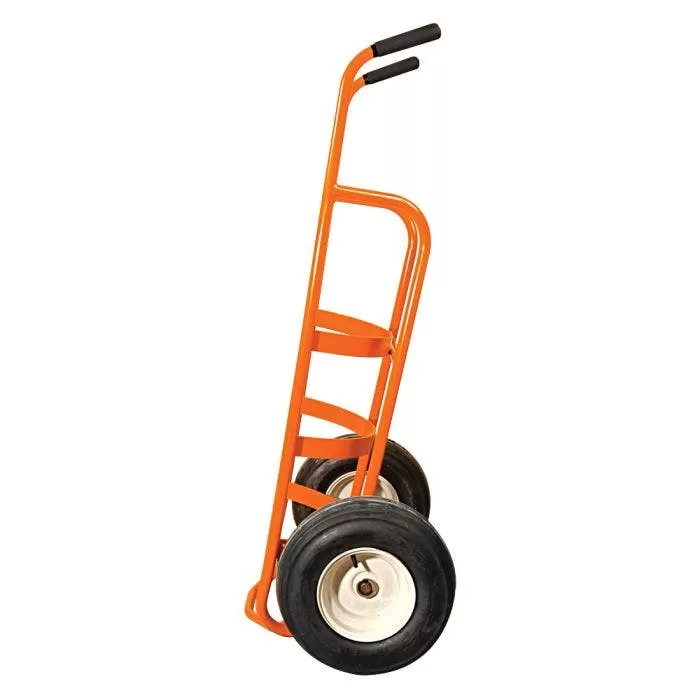

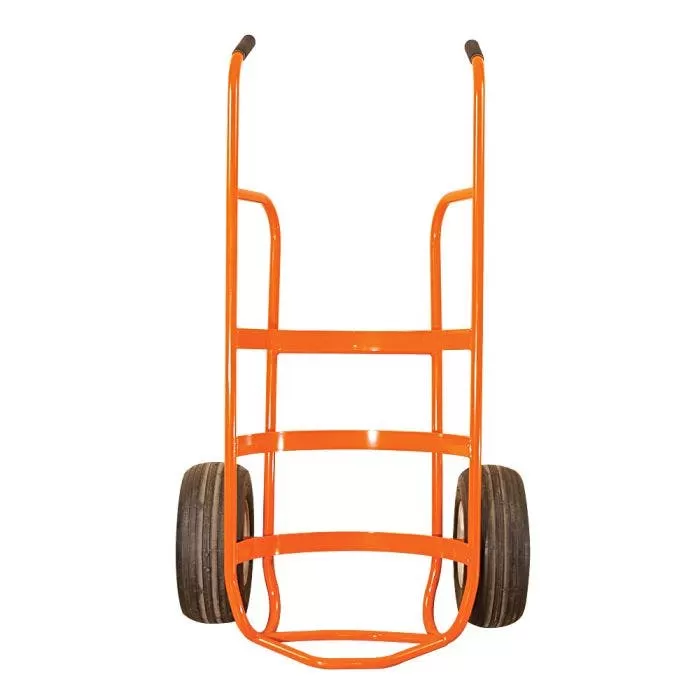

Leonard Nursery And Landscape Truck Cradle Lift 1000 Lbs, Pneumatic Tires

• 1-1/8″ diameter 14 gauge steel frame
• Dimensions are 59″ high x 34″ wide overall, inside width 22″, inside depth 11-1/2″
• Cradle is 6-3/4″ x 17-1/2″
• 1000 lbs capacity
• Solid 1″ steel axle and wide profile high capacity 16″ x 6.5″ tires are standard on all our nursery trucks

• Open back top design
• Ball and Burlap lift design with rounded nose
• Well balanced design
• High strength steel tubing
• Oilite wheel bearings
• Double vertical frame tubes on each side
• Solid 1″ steel axle and wide profile high capacity 16″ x 6.5″ tires are standard on all our nursery trucks

• Open back top design reduces risk of damage to tree trunks
• Ball and Burlap lift designed to make moving trees quick and easy. The rounded-off nose is preferable for B and B
• The balance of the truck eases the operation
• The superior strength of the tubing resists bending under weight
• Oilite bearings in the wheels outlast other bearings
• The double vertical frame tubes provide exceptional strength
• The standard axle and tires on all our nursery trucks hold up to your demands. The wide tires are easier to roll across turf

QUESTION: What order is the hardware installed when mounting the wheels? ANSWER: The order of washers is not important, as long as you have at least one on each side of the wheel. The crescent moon shaped arc rings go on the outside, inserted into the groove at the end of the axle. QUESTION: Do the Zerk fittings on the wheels need to be greased? ANSWER: Yes, the customer should do this when they receive the cart, and periodically afterwards.

• Please Note: Due to shipping carrier restrictions this item ships via Motor Freight only.

• Leonard Tough Truck Assembly Instructions and Parts
